Feature:

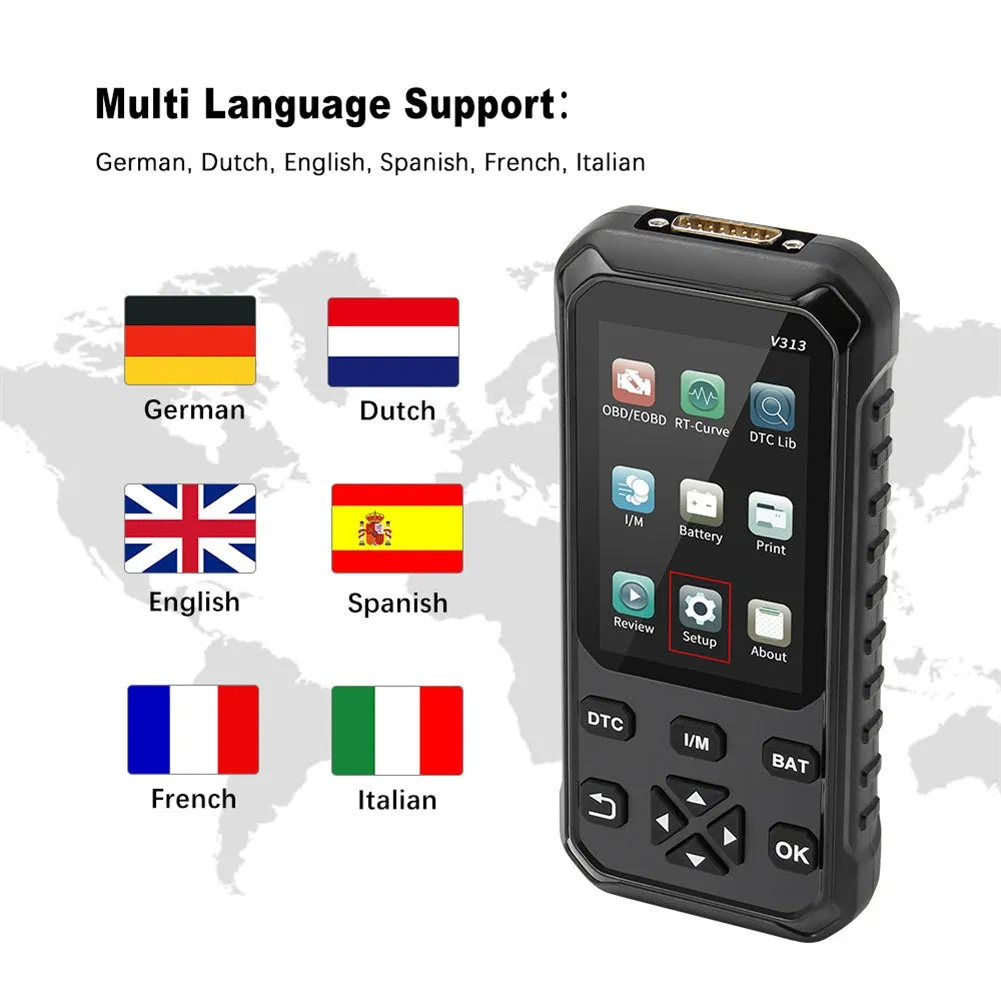

1. Support German, Dutch, English, Spanish, French, Italian

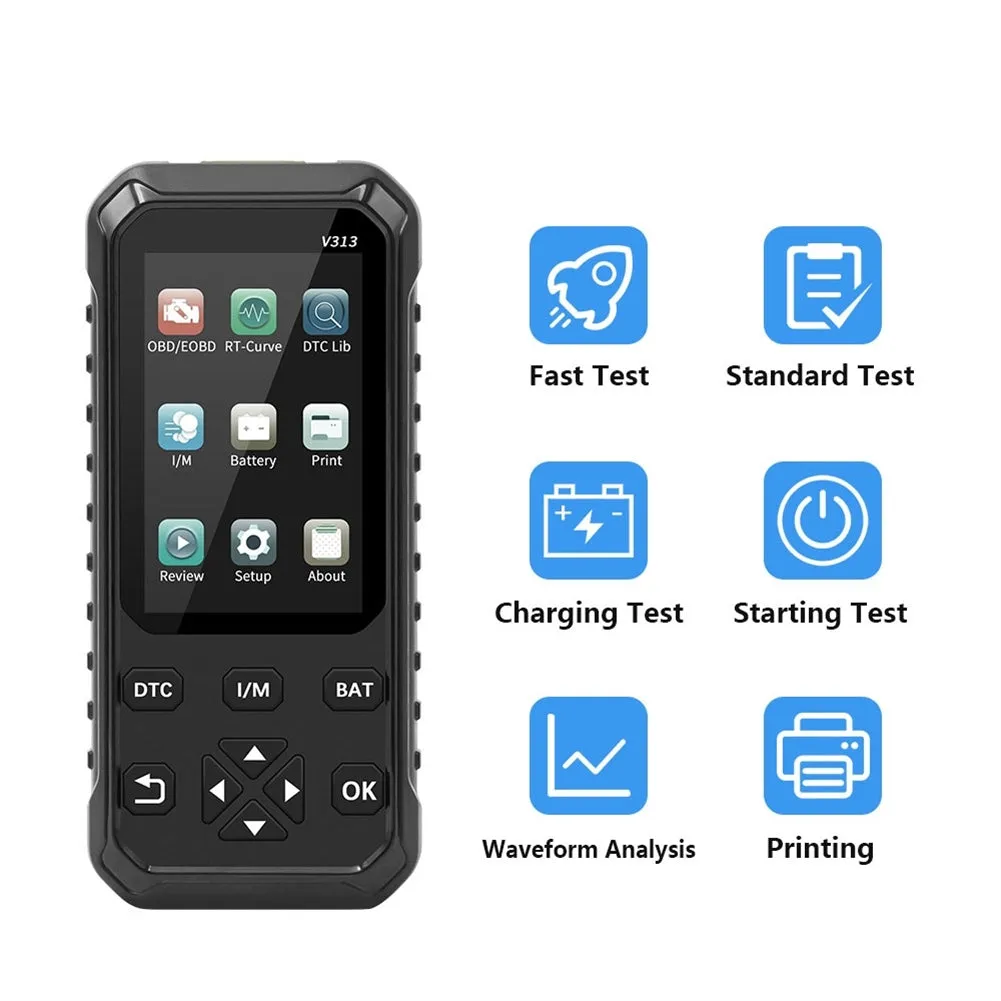

2. Quickly test the cold start current, internal resistance, battery life and remaining power of the 12V start-up lead-acid battery to determine whether the battery needs to be replaced: real-time voltage detection, battery impedance detection, and how much power is left after a period of full charge (SOC ) Battery charging current value (SOH), cold start current detection (CCA)

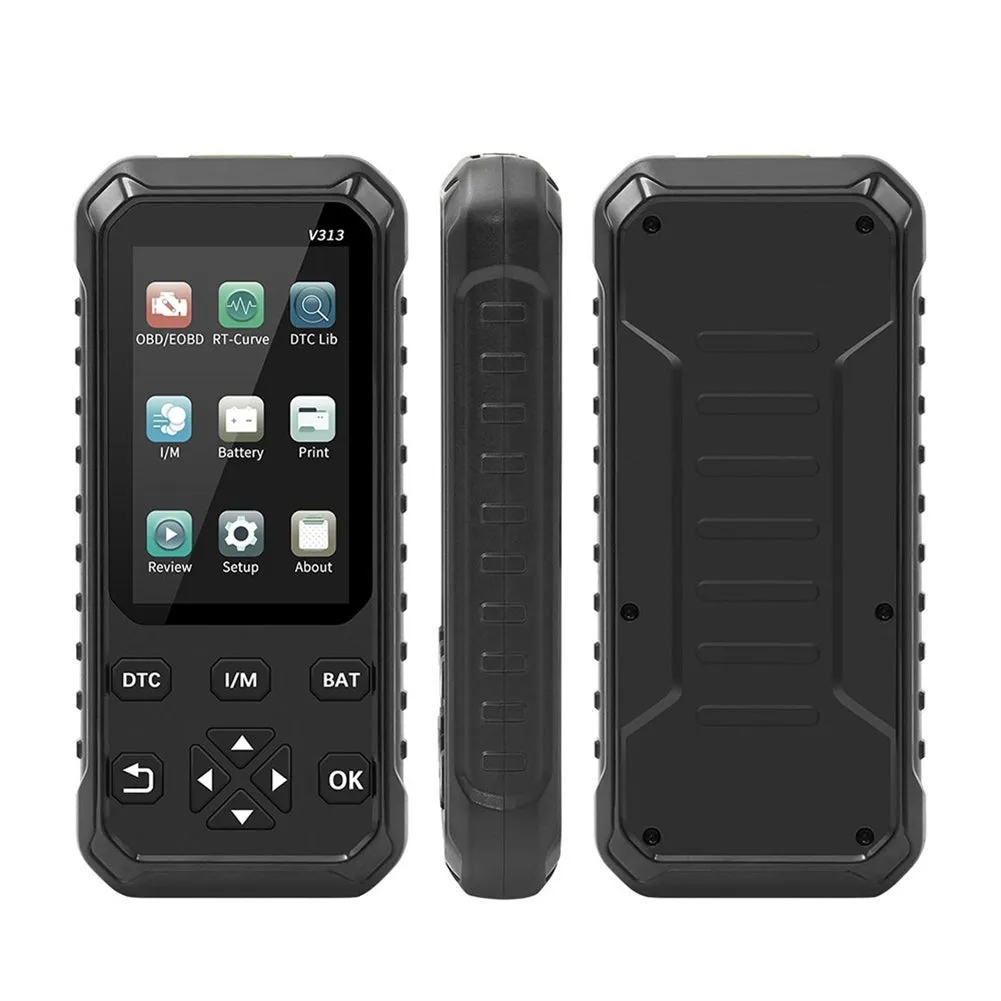

Product Name: Battery Tester and Car OBD Diagnostic Tool
Main control chip: STM32F103VET6
Working voltage: DC 12V
Working current: 98mA
Operating environment: -20～70℃
Storage temperature: -20～80℃
Supported protocol:
1. SAE J1850 PWM (41.6 Kbaud)
2. SAE J1850 VPW (10.4 Kbaud)
3. ISO 9141-2 (5 baud init, 10.4 Kbaud)
4. ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO 14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO 15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO 15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO 15765-4 CAN (11bit ID, 2500 Kbaud)
9. ISO 15765-4 CAN (29bit ID, 250 Kbaud)

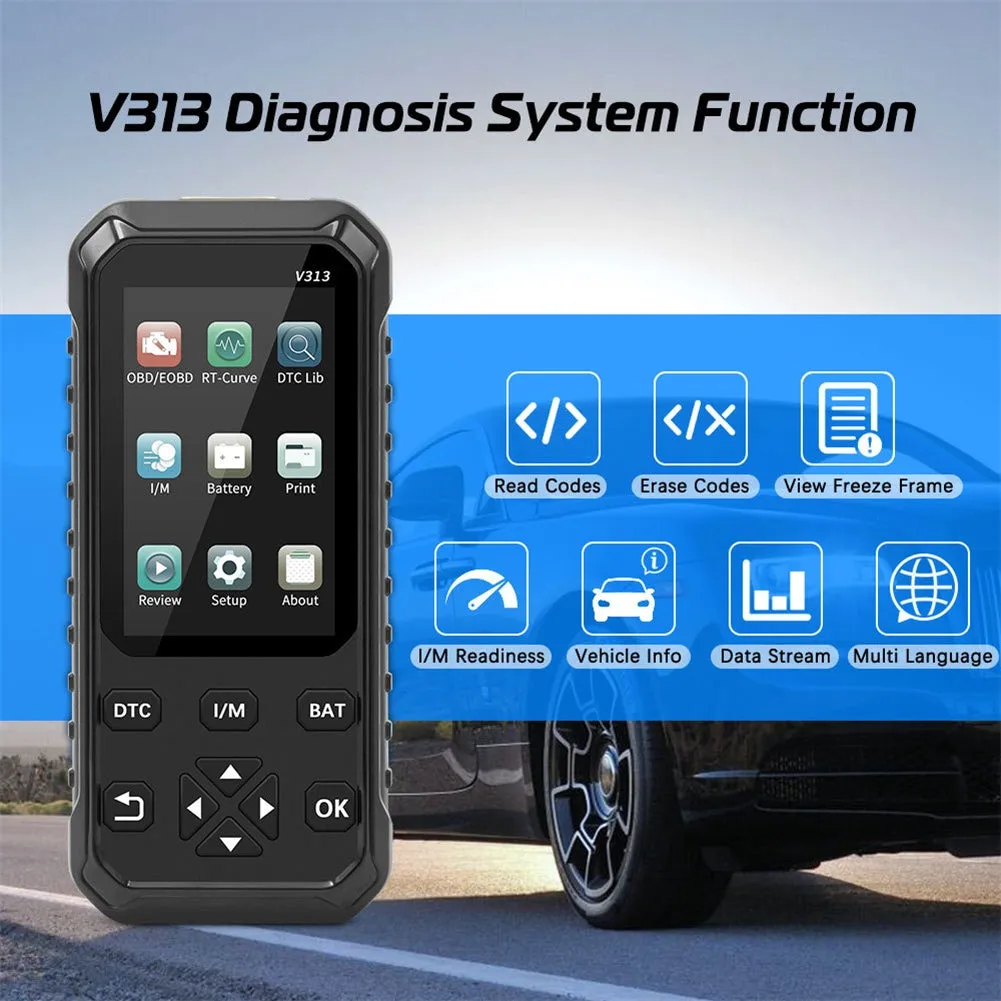

Supported vehicle data:
1. Read the error diagnostic code
2. Clear the fault code (clear the error code and turn off the MIL)
3. Engine revolutions per minute (RPM)
4. Calculated load value
5. Coolant temperature
6. Fuel system status
7. Vehicle speed
8. Short-term fuel situation
9. Long-term fuel situation
10. Intake manifold pressure
11. Advance fuel injection time
12. Inlet temperature
13. Air flow speed
14. Absolute position of throttle valve
15. Oxygen detection voltage associated with short-term fuel state
16. Fuel system status
17. Fuel pressure
18. Fuel consumption monitoring, etc.
Note: The number of data items supported by different model years are also different, and the actual support situation shall prevail.

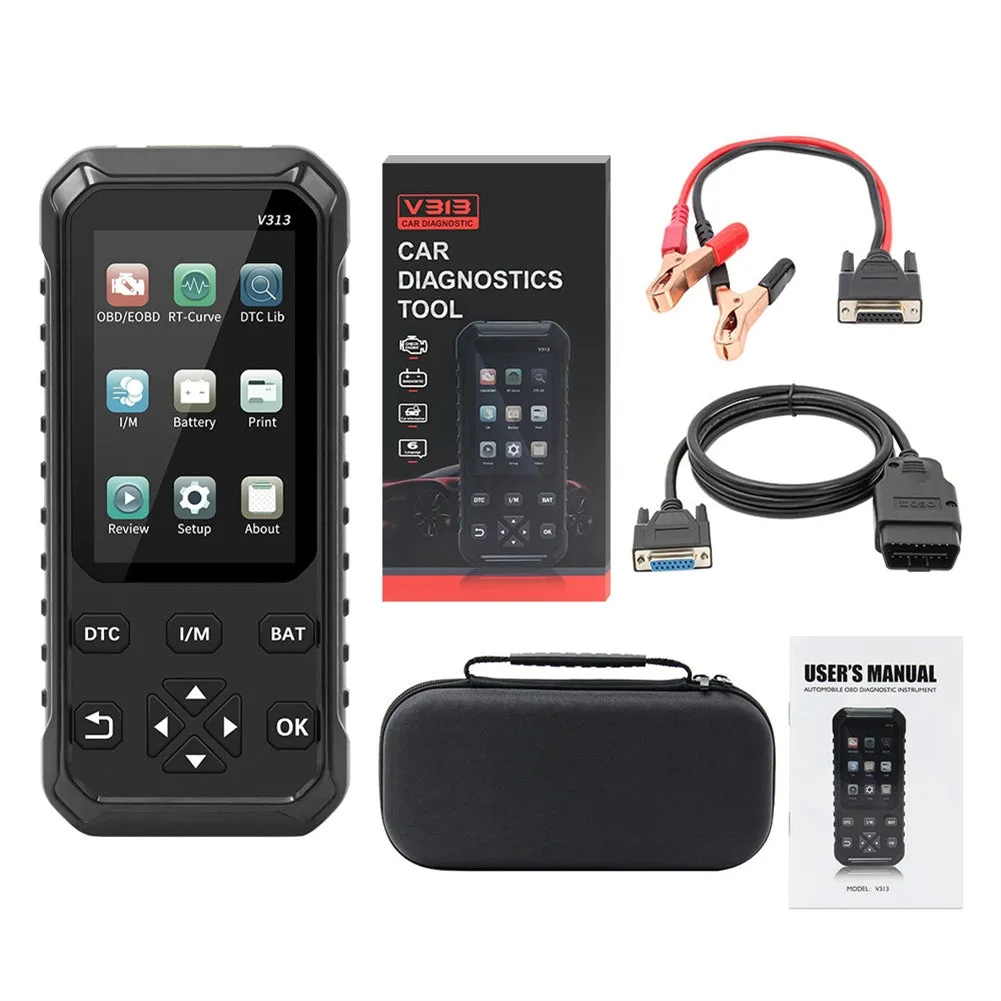

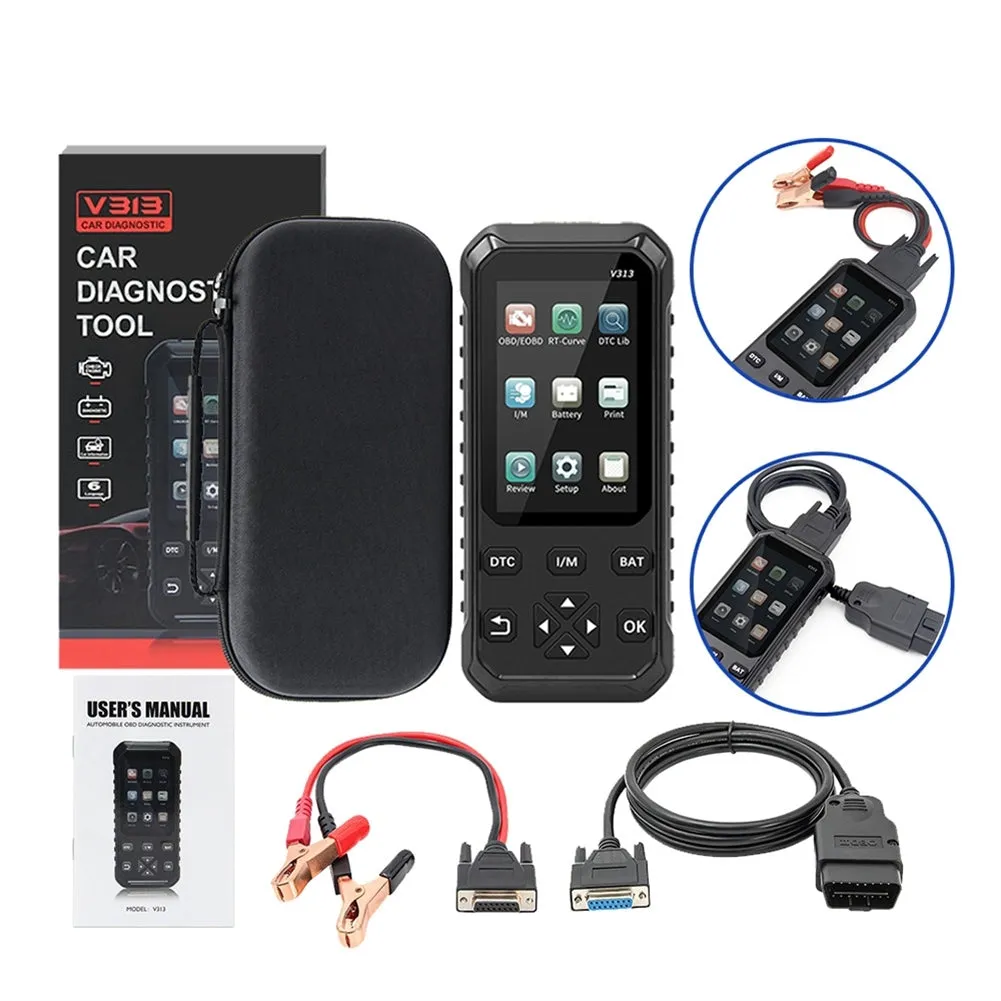

Packing list:
Battery Tester and Car OBD Diagnostic Tool x 1 set
Note:
1. Due to manual measurement, please allow 1-3cm error. Make sure you don't mind before bidding.
2. Due to the difference of different monitors, the picture may not reflect the actual color of the product. Thanks.
